Video Analytics Test Assets & Model Evaluation

Assets and test runs

Use versioned video to compare models and scenarios and retain the evidence behind a release.

Updated 27 September 2026

Version the input

An asset and its versions provide reproducible test data. Record the file list, source characteristics, required zones and the purpose of each clip. Include both target events and similar conditions that must not produce an event.

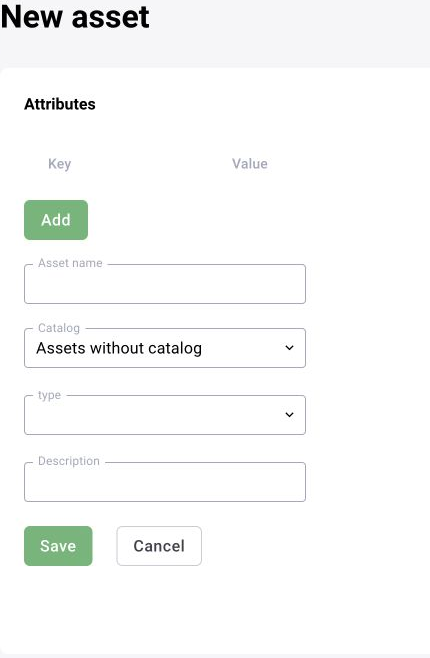

BOX 5.0: create an asset with a name, catalog, type and description. Registering the asset is separate from adding a version and its test files.

Create a run

Select the asset version and model or scenario version. Record launch_uuid, parameters and the expected outcome. A run provides processing progress, results and diagnostic context; a completed state is not a quality score.

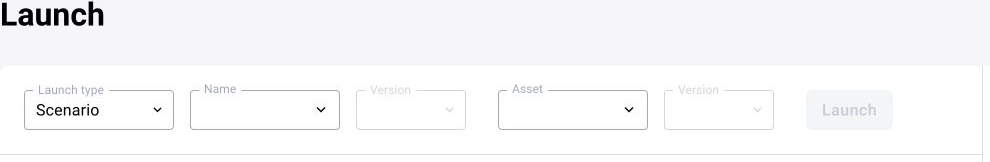

BOX 5.0: select a scenario or model and its version, then an asset and asset version. Launch remains unavailable in this empty form until the required inputs are selected.

Inspect the outputs

Original and visualised frames.
Detections, tracks, zones and intermediate messages.
Generated events and their attributes.
Processing failures, timing and resource consumption.

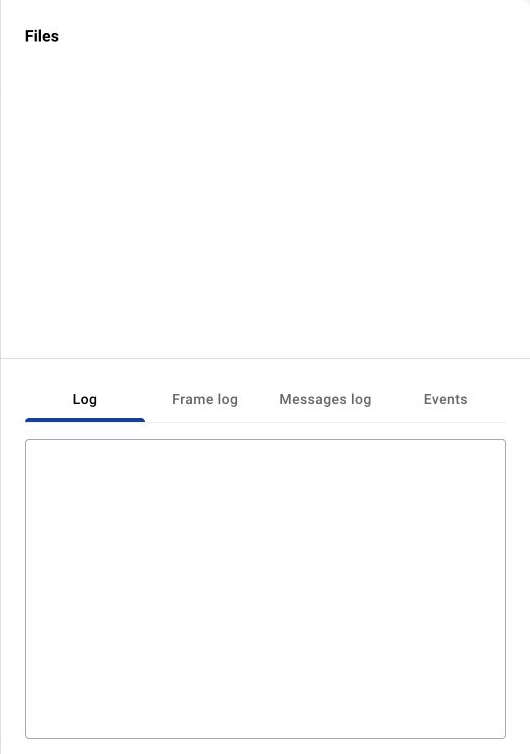

BOX 5.0: the Launch page provides file outputs and separate Log, Frame log, Messages log and Events tabs. No run has populated these panels in this example.

Compare releases

Use the same reference set for candidate and baseline versions. Precision/recall and false/missed event counts require reviewed ground truth. Operator confirmation rate is a separate metric. Review ambiguous episodes and record any change to labels or evaluation rules.

Acceptance and handover

Retain the model version, scenario version, asset version, parameters and run result together. Re-test changes to confidence thresholds, zone types and schedules. Confirm processing speed and resource use on the intended hardware before assigning the scenario to production cameras.

Asset file and zone fields

An asset contains one media type: image or video. Do not mix the two in one version. The system generates the storage object reference; a point array alone does not establish whether zone coordinates are pixels or normalized values. Check the target API contract.

Field	Type / constraint	Purpose
`asset_id` / `asset_version_id`	Positive integers	Dataset and its specific version
`asset_type` / `file_type`	`image` or `video`	Media type
`file_name`	String, up to 255 characters	File name
`media_uri`	URI string	System-generated storage object reference
`file_id`	Positive integer	Associates the file with its zones
`polygons`	String containing a JSON array	Zone geometry
`color_hex`	`#RRGGBB` string	Zone display color

Detailed asset forms and zones

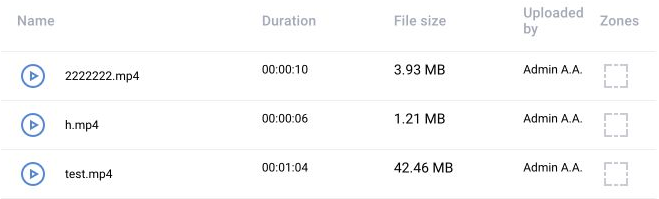

BOX 5.0: the first three files in asset sandbox_video version 1.0.2, with duration, size, uploader and Zones controls. This is a view of existing files; no new test run was started.

Run fields and processing state

A model test uses entity_type=model, entity_version_id and asset_version_id. The backend creates an execution session, attaches the data and passes the task to the executor. Multiple videos are processed sequentially.

Do not use progress_percent as the sole success signal. Check status and that results can actually be opened. completed means processing finished; the user’s quality conclusion is stored separately.

Field	Type / allowed values	Purpose
`launch_uuid`	UUID string	Run and artifact identifier
`status`	`created / running / failed / completed / stopped`	Processing state
`progress_percent`	Integer 0–100	Overall progress
`entity_info`	Object	Entity and version under test
`asset`	Object	Asset and version
`sandbox_session_id`	Integer or null	Execution session
`size`	Integer	Result size in bytes
`result`	String or null	User conclusion

Run parameters and reading results

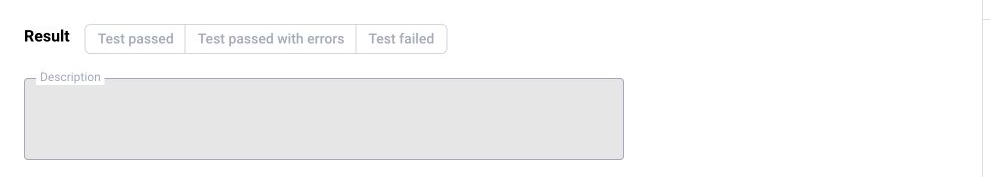

BOX 5.0: the run assessment provides passed, passed with errors and failed outcomes plus a description. This empty form shows where assessment is recorded, not a completed run.

Use the documentation and configuration supplied for your installed release. Environment addresses and access credentials are provided privately with the delivery.
