Troubleshooting video, events, and access

Troubleshooting video, events, and access. Detailed instructions, field descriptions, procedures, and interface illustrations.

Updated 11 October 2026 · Application administrator / user

Troubleshooting

Follow the chain from source to result: camera → stream → analytics → conditions/matrix → journal → decision → delivery/report. This is faster than changing several settings at once.

Symptom	Check first	Next step
Menu item missing	Role and enabled modules	The administrator checks the permission tree and release configuration
Camera missing from the list	Filters, site, access scope	Reset filters; check camera assignment to the role/user
Camera disabled	Manual state, schedule, license	View activity history and the configured operating period
Camera enabled but no image	Address, network, protocol, VMS source	Open health status; provide the integrator with the time and state
Video available but no detection	Neural network, preset, classes, thresholds, zones	Check detector state in the cluster and use a suitable test frame
Detection visible but no violation	Class state, matrix, journal type, filters	Check events and the tab for matrix-rejected records
Too many false alerts	Camera angle, object size, zone boundaries, threshold	Review examples for one class; change one parameter and compare
No presence counter	Zone type, analytics, schedule, period	Cross-check the map/archive and data availability; do not automatically interpret a gap as absence
Entry and exit reversed	Zone geometry and direction	Test a known passage in both directions
Incorrect parking count	Cameras, sensors, directions, manual corrections	Compare the vehicle log and sensor journal
Notification not received	Recipient, channel, activation, sources/classes, schedule	Find the ID in the delivery journal and check the gateway
Photo available but no video	Recording enabled, archive period, clip generation	Check the archive, storage, and retention period
Empty report	Period, filters, role, job state	Check the source journal with the same conditions
Report takes a long time	Job state and volume	Do not create many duplicates; narrow the period for diagnosis
LLM does not respond	Connection, activation, network, load	Check the test and execution record
LLM responded but processing failed	JSON, categories, required fields, coordinates	Compare the response with the contract; see §11.9
History/data missing	Period, filters, Trash, retention period	Establish exactly what was deleted; recovery is possible only if data remains available
Temporary page-loading error	Whether loading completed and whether the section opens on a second attempt	If it recurs, send support the time, route, error text, and versions

Before contacting support, prepare the section name, user role, camera/event ID, exact period with time zone, sequence of actions, error text, and component versions. Do not assert a cause before checking: processing error is a symptom, not proof of a model or database failure.

Graph and version problems — §4.20. In your support request, specify the camera, scenario and model versions, time with time zone, expected and actual behavior, one reproducible example, and a relevant log excerpt. Describe one problem per request. Obtain contact details and response times from your contract/current portal. After a fix, repeat the original test and confirm resolution.

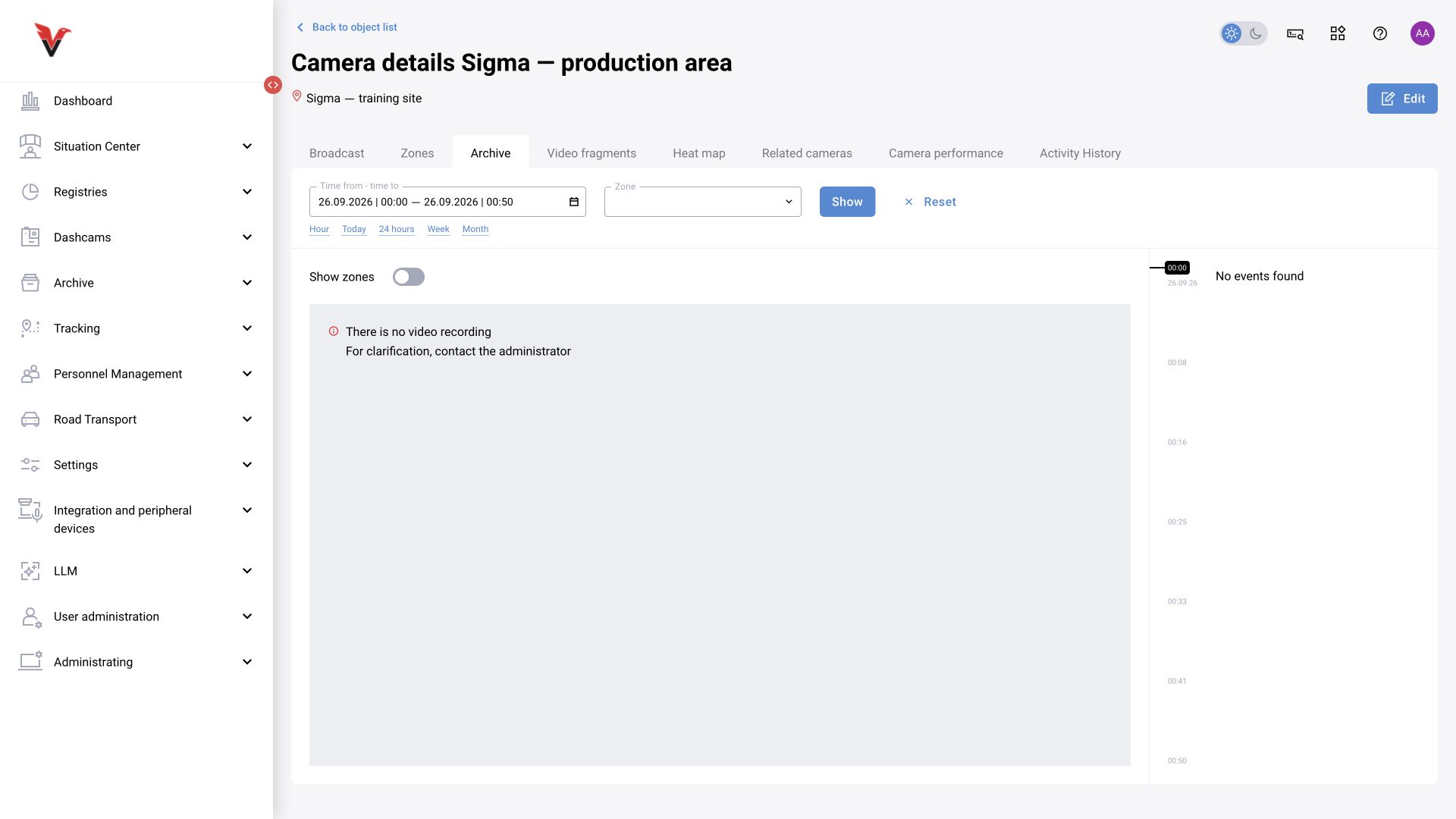

Shared module, BOX 3.2 illustration. Camera card, Archive tab: the message Video is not being recorded is displayed. This is the state of the selected camera, not evidence that the archive function is unavailable. Localized reference view adapted from the captured interface; layout and captured settings are preserved.

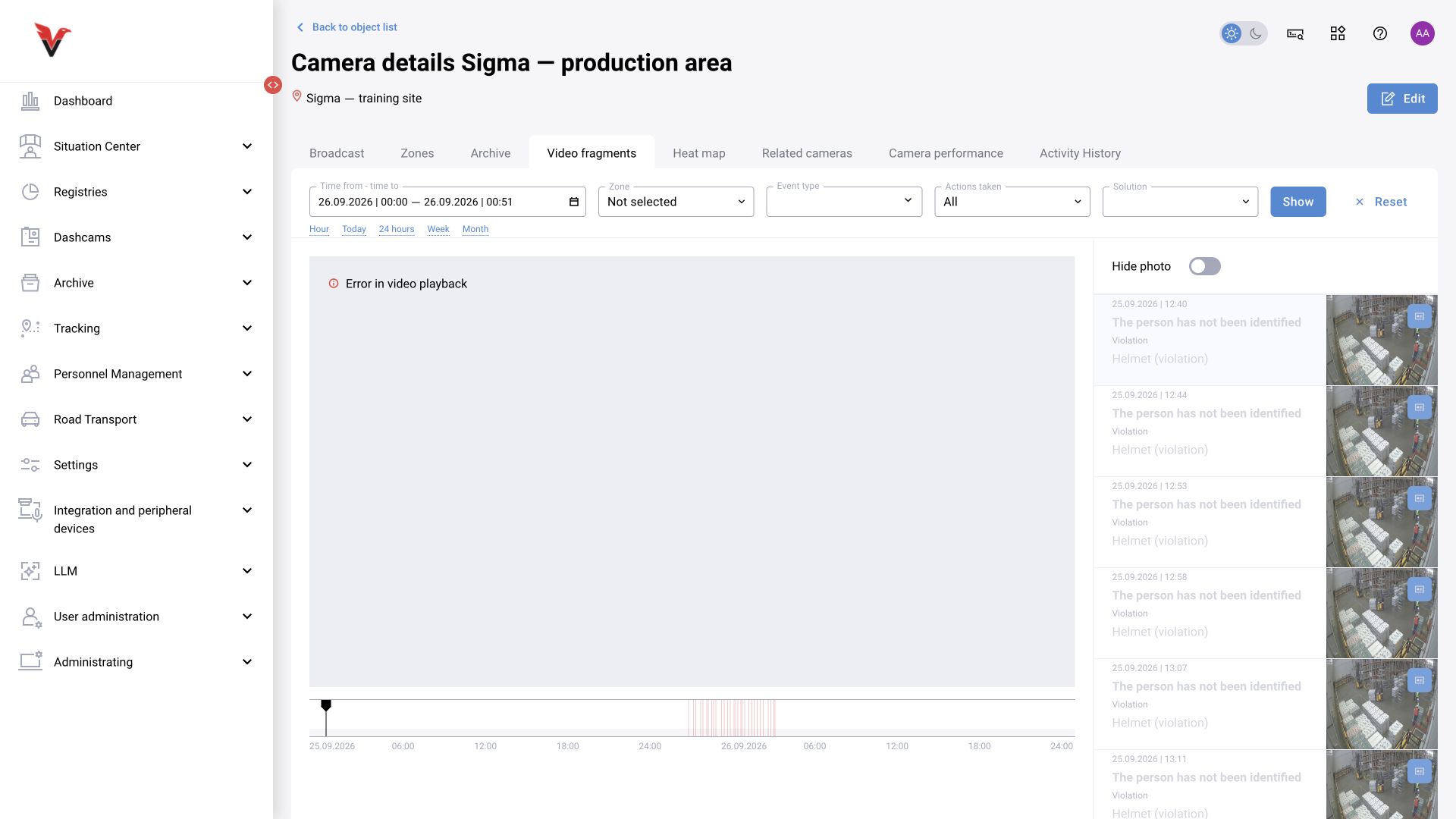

Shared module, BOX 3.2 illustration. Camera card, Video clips tab: event list and an error message when playing the selected video. Localized reference view adapted from the captured interface; layout and captured settings are preserved.

BOX 3.2: when all cameras stop working together

Applies to: BOX 3.2 deployments that include the load-balancer component. These checks help distinguish a shared processing problem from a viewing problem on one camera. Reading server logs requires administrator access; an operator can collect the interface observations.

Clear monitoring filters, check several cameras from different sites, and compare video and analytics states. Record when the problem began and when viewing last worked.
If only browser playback fails, compare HLS and WebRTC. Record whether either mode works.
For a simultaneous camera failure, an administrator should first read load-balancer logs for the same interval. Correlate messages with camera states and recent configuration changes, using the log viewer provided for the deployment.
Give support the time and time zone, affected cameras, video and analytics states, component versions and relevant messages. Remove credentials and stream URLs containing passwords from shared diagnostic material.

Expected result: the scope of the failure is established and time-correlated evidence is available for diagnosis. A failure affecting every camera does not by itself prove a load-balancer fault. Preserve diagnostic evidence and agree on a recovery procedure before restarting services or changing camera settings in bulk.

Platform 4.0 / BOX 5.0 may use a different service composition and balancing mechanism. Follow the operating architecture for that deployment.

Use the documentation and configuration supplied for your installed release. Environment addresses and access credentials are provided privately with the delivery.
